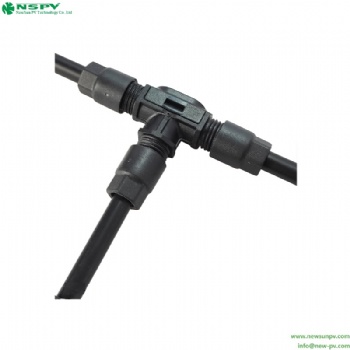

Solar L mini T branch connector

Solar mini connectors are applicable in glass solar system with BIPV junction box.
INQUIRY

L_Mini Connector T Type
Product Specifications
Insulation material	PPE/PA	Safety degree	II
Rated current	20A	Flame class	UL94-V0
Rated voltage	1500V DC	Insertion force/Withdrawal force	≤50N / ≥50N
Test voltage	8kV(50Hz,Imin)	Ambient temperature range	-40℃…+85℃(IEC)
Typical contact resistance	≤0.25 mΩ	Suitable cable cross sections	1.5~4mm²/16-12AWG
Contact material	Copper,Tin plated	Connecting system	Crimp connection
Degree of protection	IP67	Nut cap locking force	1-1.5Nm
Cable O.D. size Max.(mm)	6.2	Upper limiting temperature	110℃(IEC)
