PV edge connector

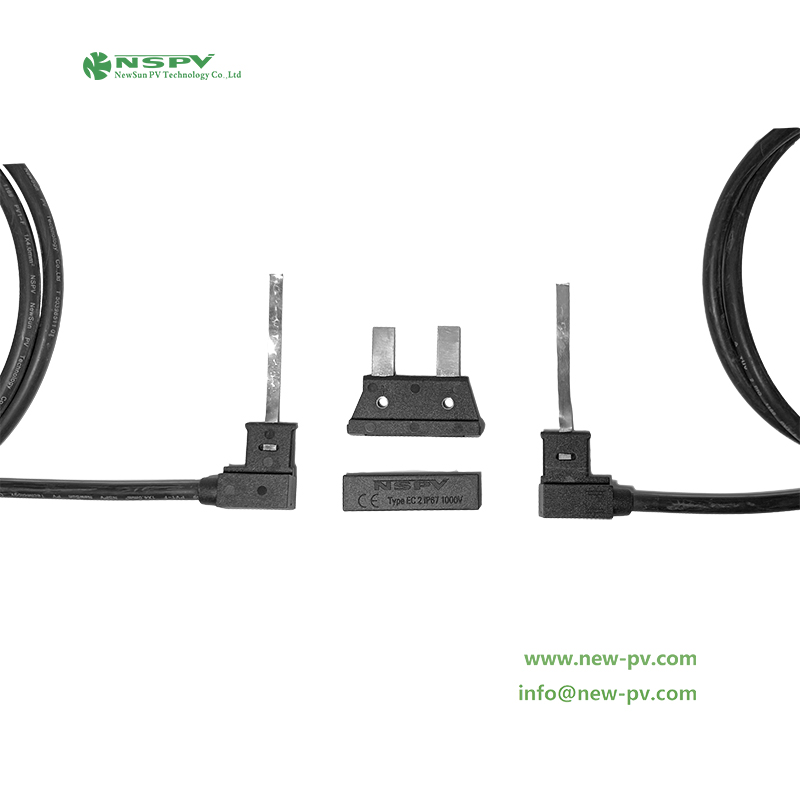

PV edge connector for bifacial modules EC1EC2

The slimline PV edge connectors can be mounted on the edge of double-sided panels without obscuring any solar cells.
INQUIRY

Specifications for double-sided panels edge connector

Insulation material	PA/CU	Safety degree	II
Rated voltage	1000V&1500VDC	Flame class	UL94-V0
Rated Impulse voltage	16KV	Installation type	Outdoor,UV resistant(F1)
Test voltage	8kV(50Hz,1min)	Ambient temperature range	-40℃…+85℃(IEC)
Contact resistance	≤ 0.25 mΩ	Suitable cable cross sections	2.5~4mm2/14~12AWG
Contact material	Copper,Tin plated	Connecting system	Soldering
Degree of protection	IP68(In potting)	Upper limiting temperature	110℃(IEC)
Overvoltage category/Pollution degree	CATIII/2	Reference standard	TUV/CE(IEC62852:2014)
