Solar branch fuse connector

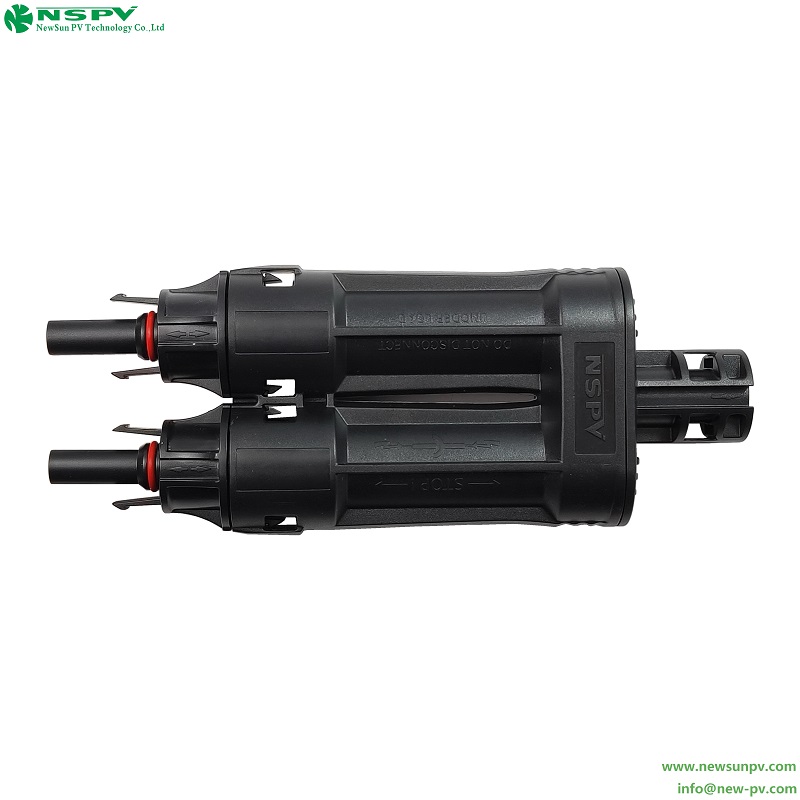

PV4.0 Solar 2in1 branch fuse connector 1500VDC
- PV4.0 1500VDC 2 in 1 branch solar inline fuse connector series have many types
- which can be customized by your requirements.
- Recommended that the Max ambient temperature is 75℃,and not exceed 8 hours in 75-85℃.
- INQUIRY
| 1500VDC 2in1 solar inline fuse connector | |||||||||
| Product Specifications | |||||||||
| Insulation material | PPE/PA | Fuse Specification | 1A,2A,3A,3.5A,4A,5A,6A,8A, 10A,12A,15A,16A,20A,25A,30A,32A,35A,40A,45A,50A | ||||||
| Rated current(Without fuse) | Max. Input:30A Max. Output:60A | Safety degree | II | ||||||
| Rated voltage | 1500VDC | Flame class | UL94-V0 | ||||||
| Maximum voltage | 8kV | Ambient temperature range | -40℃…+85℃(IEC) | ||||||
| Contact resistance | ≤0.25mΩ | Upper limiting temperature | 110℃(IEC) | ||||||
| Contact material | Copper,Tin plated | Suitable cable cross sections | 4-10sqmm cable | ||||||
| Degree of protection | IP68 | Suitable for fuse size(mm) | 10*85/10/14*85 | ||||||
| Rated Impulse voltage | 16kV | Regulatory approval | TUV/CE (EN60269/EN62208) | ||||||
