Solar electrical protection > Solar fuse 20*127mm >

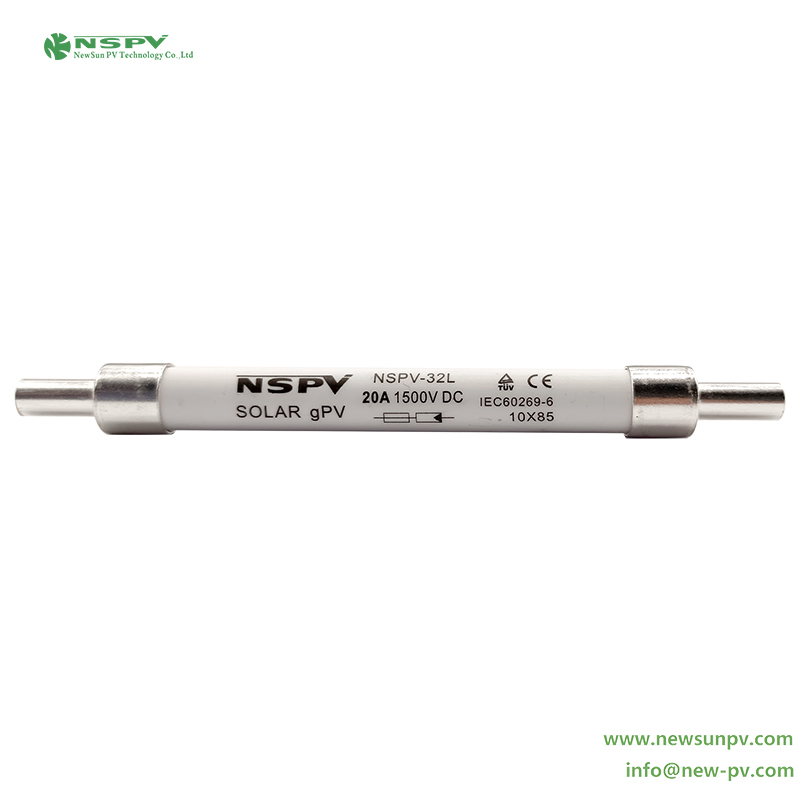

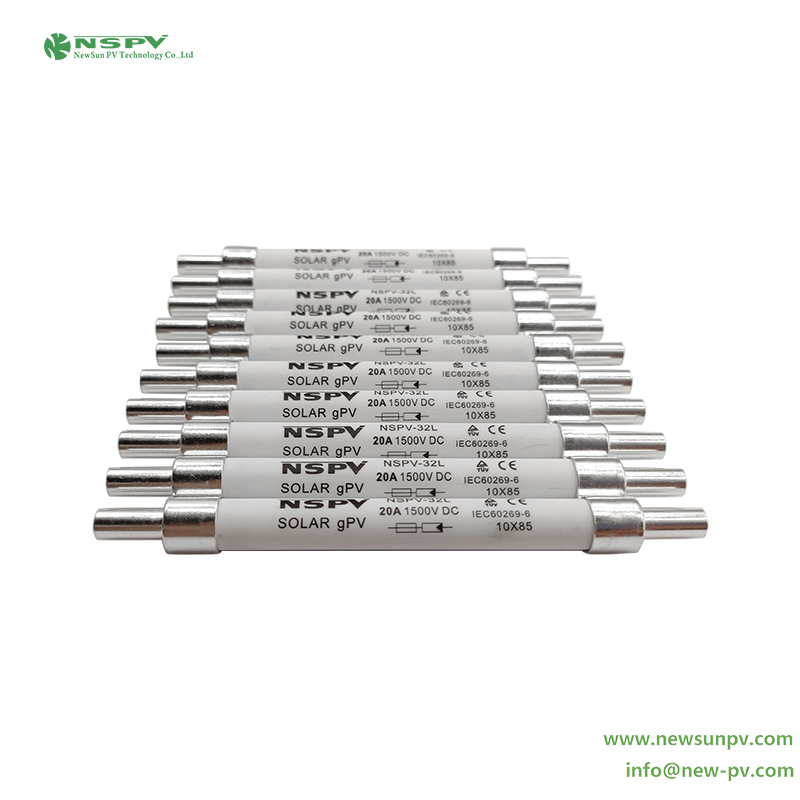

Solar Fuse 10*109mm 1500VDC riveted type
- Solar fuse use to protect the solar system
- INQUIRY
| Solar(PV) Power Protection 1500VDC Fuse | |||||
| Product Specifications | |||||
| Model/size | NSPV-32L/10*85 NSPV-32L.1/10/14*85 | Rated voltage | 1500VDC | ||
| Classes | gPV | Breaking capaclty | 20KA | ||
| Rated current | 2A,3A,3.5A,4A,5A,6A,8A,10A,12A,15A,16A, 20A,25A,30A,32A,40A,50A | The working temperature | -40C°~+90C° | ||
| The installation site | The altitude does not exceed 2000m | The storage temperature | -40C°~+90C° | ||
| The storage humidity | ≤90% | Reference the standard | IEC60269-1/GB13539-1 IEC60269-6/GB13539-6 | ||
| Rated Impulse voltage | 1575V | Installaction method | Fuse holder or fuse connector | ||
