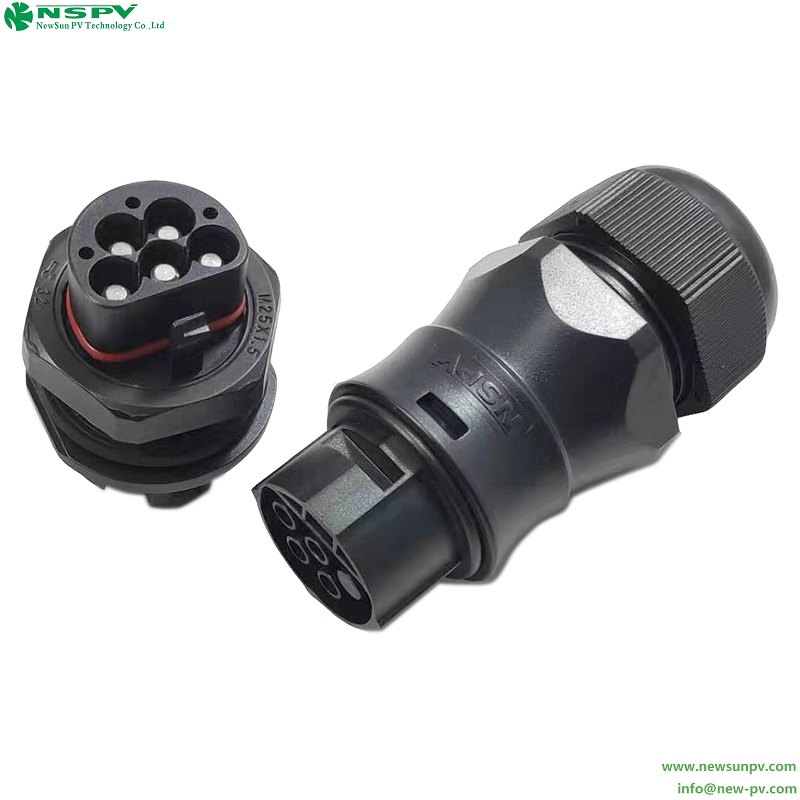

Solar AC3P/5P Connector old
- The solar AC connector protection degree is IP68, it's convenient to assemble and disassemble.
- INQUIRY
Product specification
| Insulation material | PPE/PA |
| Rated current | Max.50A |
| Rated voltage | 500VAC |
| Dielectric withstand voltage | 4KV |
| Typical contact resistance | <5mohm |
| Contact material | Copper,Tin plated |
| Degree of protection | IP68 |
| Flame class | UL94-V0 |
| Contaction type | Screw/Crimp |
| Contaction size/number of contact | 4*5 |
| Ambient temperature range | -40℃until...+85℃ |
| suitable cable cross sections | 2.5~10mm2 |
| Suitable cable OD Max. | 18mm |
| Standard | UL2238/EN 61984/CE |
