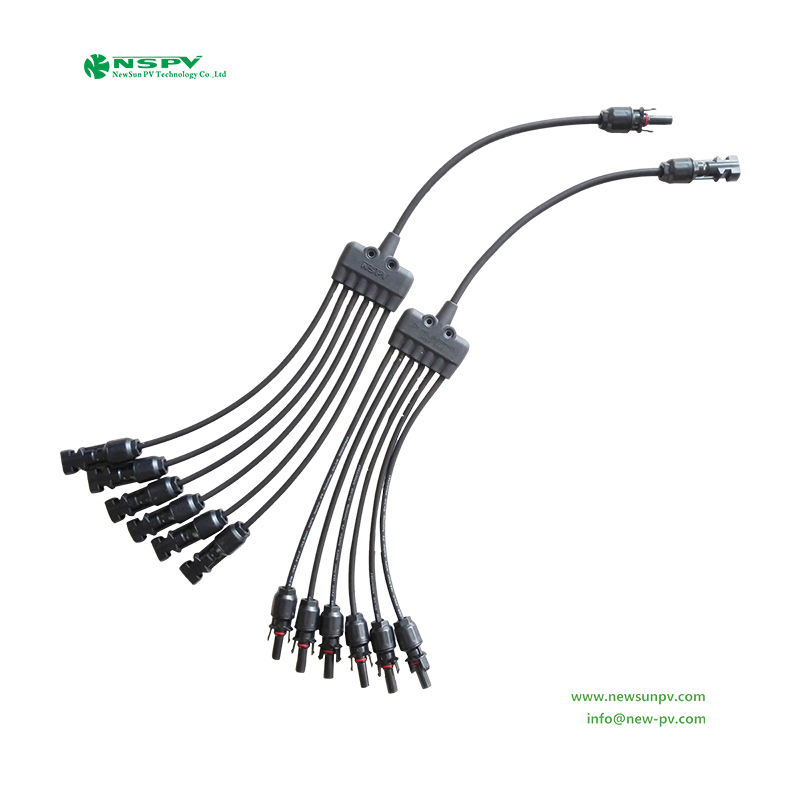

Solar cable assembly 6in1

The MC4 solar cable connector is use for solar system assemble, the waterproof is IP67, it is a detachable,new type connector, good stable specification, convenient to assemble，it can be customized
INQUIRY

Our Services

♦ About the price, it will be moved depend on the quantity.

♦ All the products are packed in strict accordance with the regulations.

♦ If you are interest in our products, contact us please!

♦ TEL: 86-769-85371660

♦ FAX: 86-769-81871001

♦ Website: www.new-pv.com

♦

Product Description

Materials

Insulation	TPV
Color	Black
Contacts	Copper

Electrial Data

Rated current	30A
Rated voltage	1000V DC & 600V DC
Contact resistance	≤5mΩ
Wire size range	2.5~6mmsq(10AWG~14AWG)

Enviromental

Degree of protection	IP67
Standards	TUV
TempratuAmbient temperature range	-40°C until +85°C
Material RTI	110°C
Flame class	UL94-V0
Safty class	II
Pin dimensions	4mm

Simple, quick installation

Standard module design, assembled discretionarily

With the capacity of anti-aging and anti-ultraviolet radiation

Meet the requirement of outdoor condition

The product has been approved by TUV

Cable Length determine by customers
