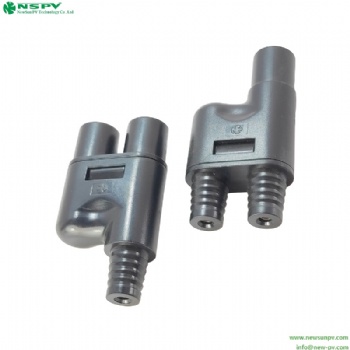

Solar PV3.0 DC Branch Rubber Connector

  • The PV3.0 DC solar cable connector is used for solar system assemble, the waterproof is IP67, new type connector, good stable specification, convenient to assemble.
  • INQUIRY

Product Description



Materials

Insulation

PPE

Color

Black

Loop

Ruber

Contacts

Copper, tin plated



Electrical Data

Rated current

30A

Rated voltage

1000V DC

Contact resistance

≤0.5mΩ

Suitable Cable size

2.5~6mmsq(10AWG~14AWG)



Enviromental

Degree of protection

IP67

Standards

TUV

Ambient temperature range

-40°C until +85°C

Material RTI

110°C

Flame class

UL94-V0

Safty class

 II

Pin dimensions

3mm



Advantages

Simple, quick installation

Standard module design, discretionary assembly

Anti-aging and anti-ultraviolet radiation

Weatherproof and waterproof
