PV4.0 DC solar connector > solar blocking diode connector >
1000VDC solar diode connector
- IP degree is 67, it can be customized according to your requirement,
- this is type of detachable connector.
- INQUIRY
Product Description
Specification:
Rated current..............................................................1-30A
Rated voltage.............................................................1000V
Test voltage................................................................6kv(50Hz,lmin
Typical contact resistance...........................................≤ 5m
Contact material.........................................................Copper,Tin plated
Degree of protection...................................................IP2X/IP67
Safety degree.............................................................II
Flame class.................................................................UL94-V0
Material RTI................................................................110°C
Withdrawal force........................................................≥ 50N
Insertion force............................................................≤ 50N
Ambient temperature range.......................................-40°C until+85°C
Pin dimensions............................................................4.0
Suitable cable cross section........................................2.5/4.0/6.0mm2
Advantage:
Simple, quick installation
Standard module design, assembled discretionarily
With the capacity of anti-aging and anti-ultraviolet radiation
Meet the requirement of outdoor condition

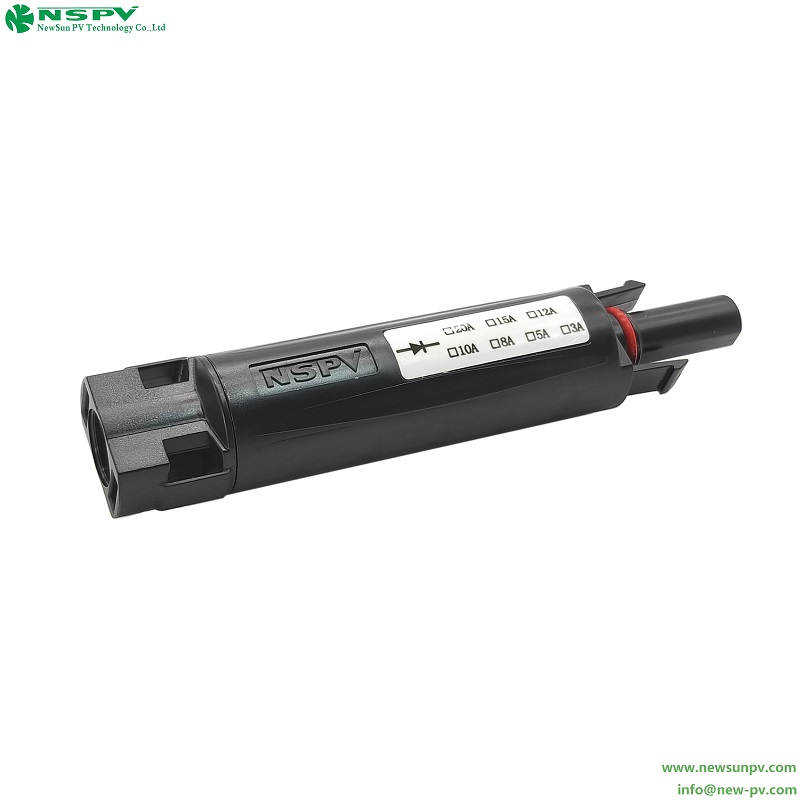

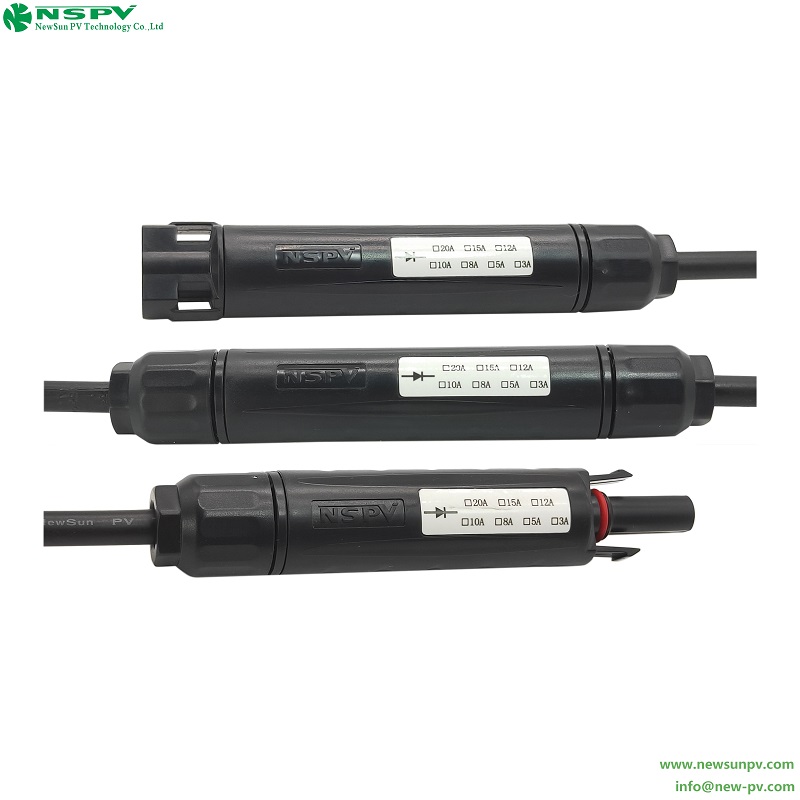

Picture show:
