1500VDC solar fuse connector TUV certified solar inline fuse holder

Product Description

Specification:

Insulation material .............................................. PPE

Fuse Specification...............................................1A-50A

Rated current（Without fuse）............................50A

Safety degree .......................................................II

Rated voltage .......................................................1500VDC

Flame class ............................................................UL94-V0

Test voltage ..........................................................8kV(50Hz,Imin)

Insertion force/Withdrawal force ........................≤50N / ≥50N

Contact resistance ..............................................≤0.25 mΩ

Ambient temperature range............................. .-40℃…+85℃(IEC）

Contact material....................................................Copper,Tin plated

Upper limiting temperature ...............................110℃(IEC)

Degree of protection ...........................................IP68(1m,1H)

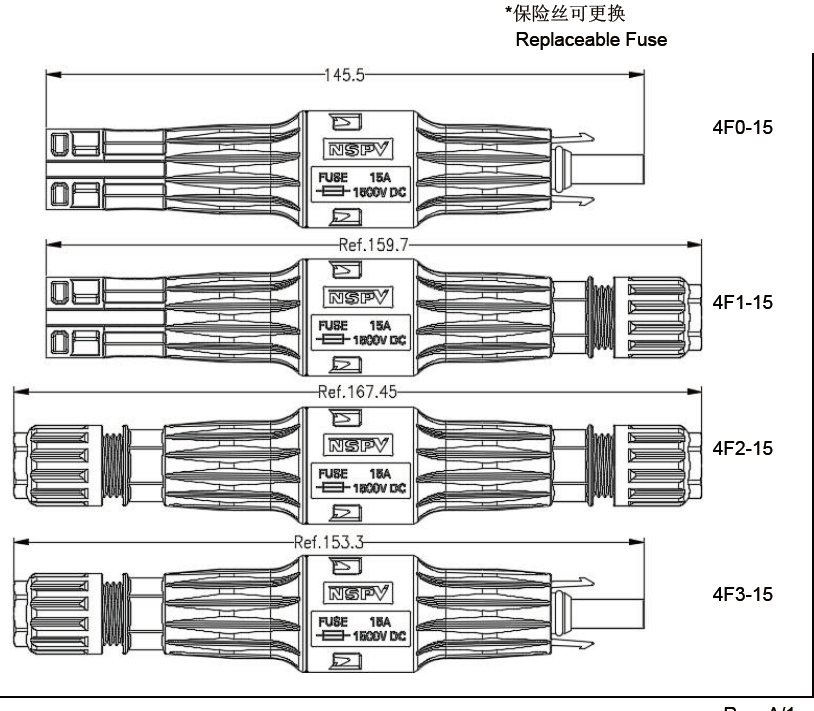

Suitable cable cross sections .............................2.5~10mm2 /14~8AWG(4F1-15~4F3-15)

Rated Impulse voltage..........................................12KV

Suitable for fuse size(mm) ..................................10*85 / 14*65 / 14*85

Advantage:

Simple, quick installation

Standard module design, assembled discretionarily

With the capacity of anti-aging and anti-ultraviolet radiation

Meet the requirement of outdoor condition

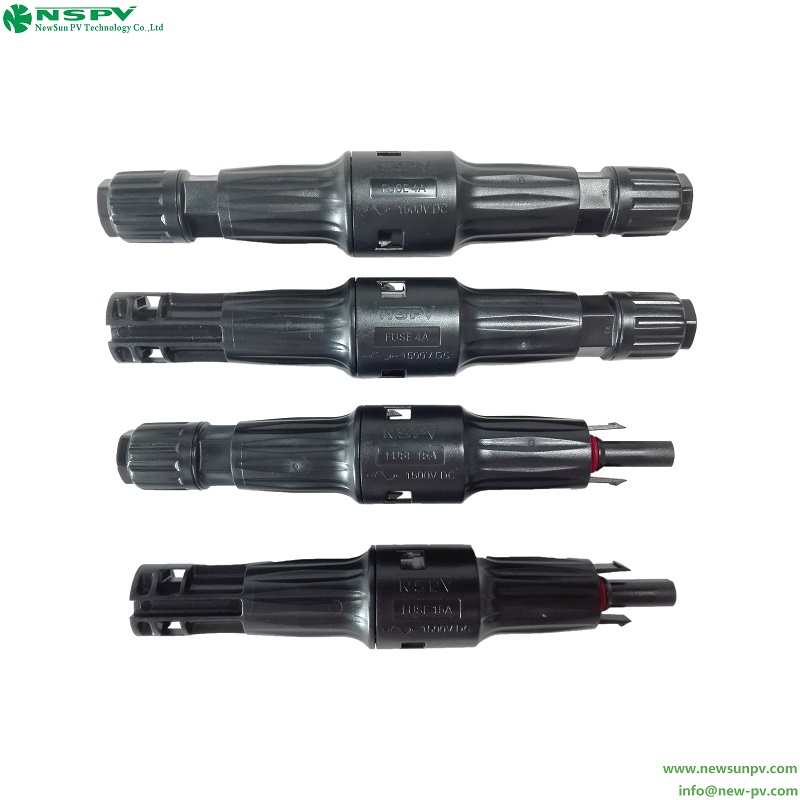

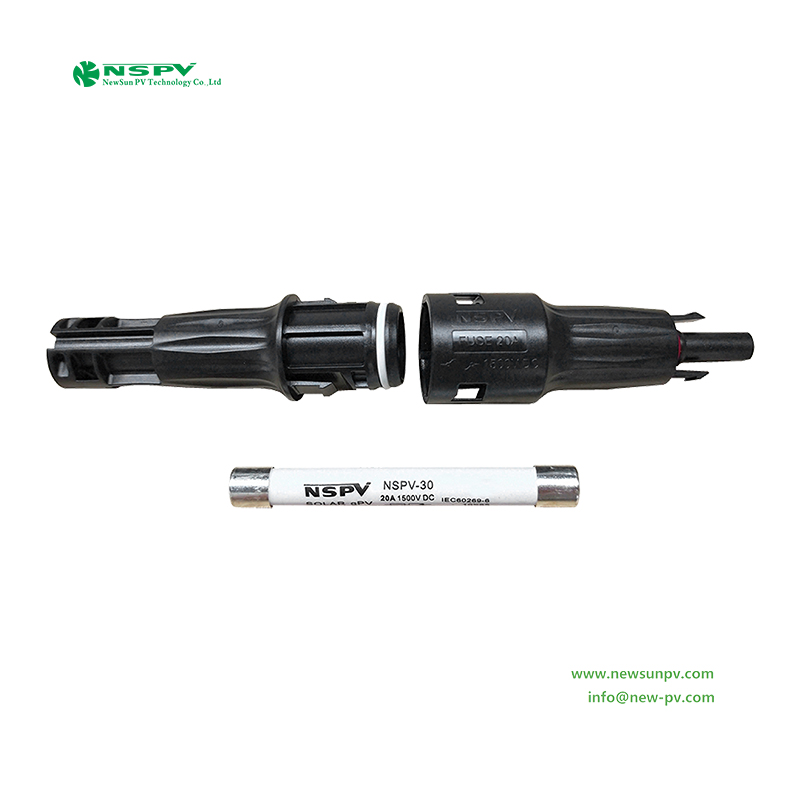

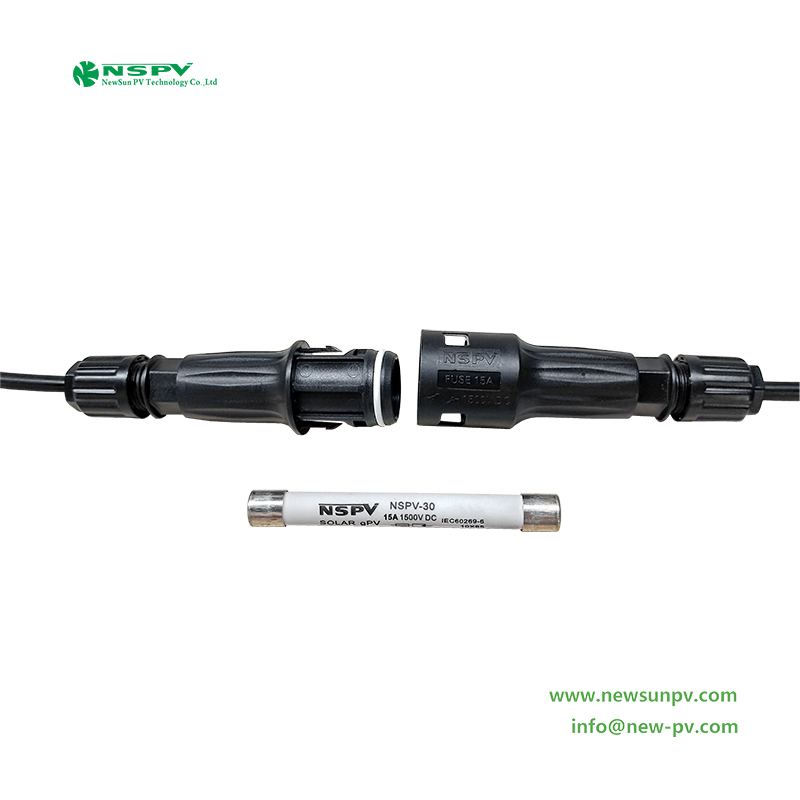

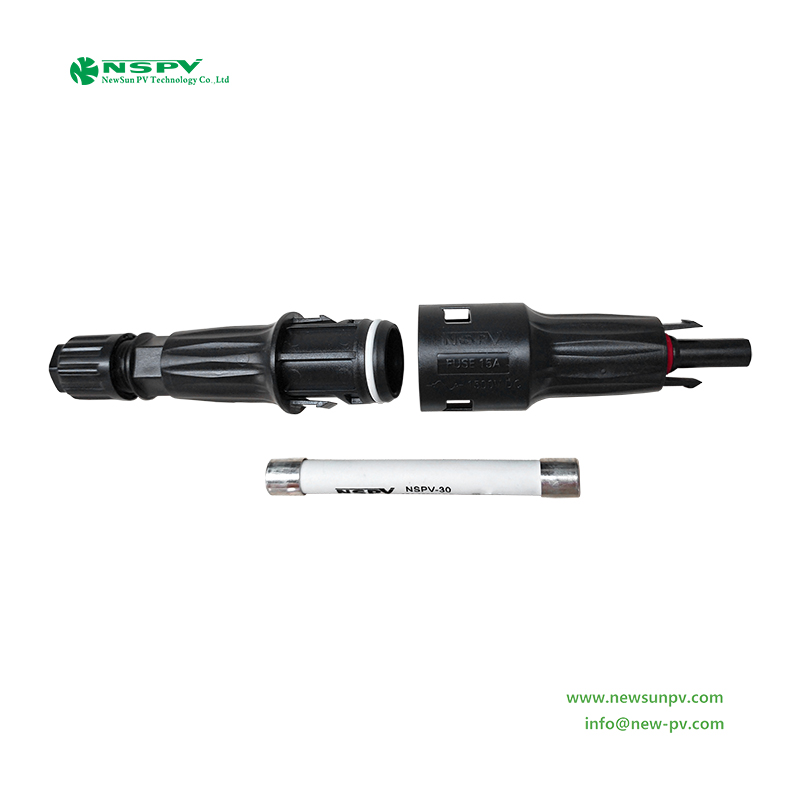

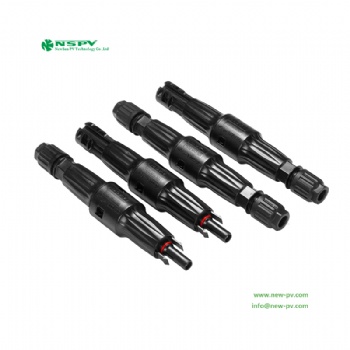

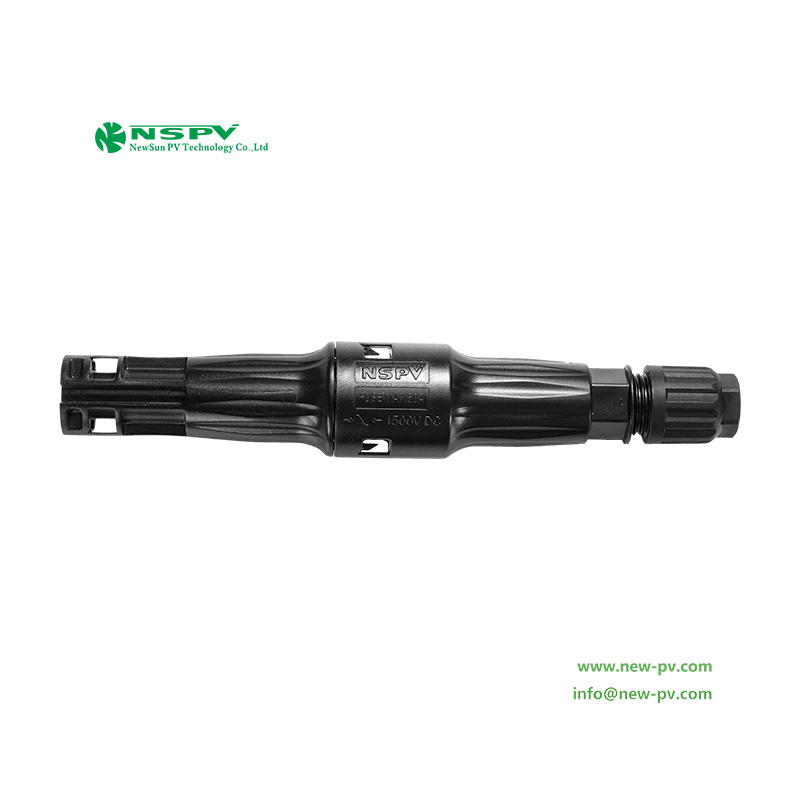

Picture show:
