PV4.0 DC solar connector > 1500VDC Cable Connector >

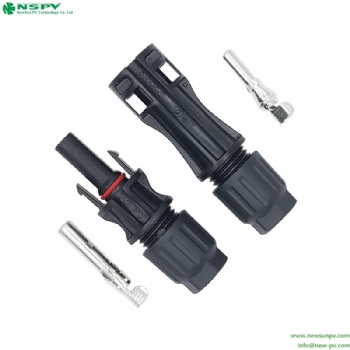

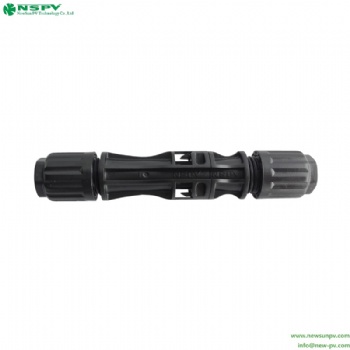

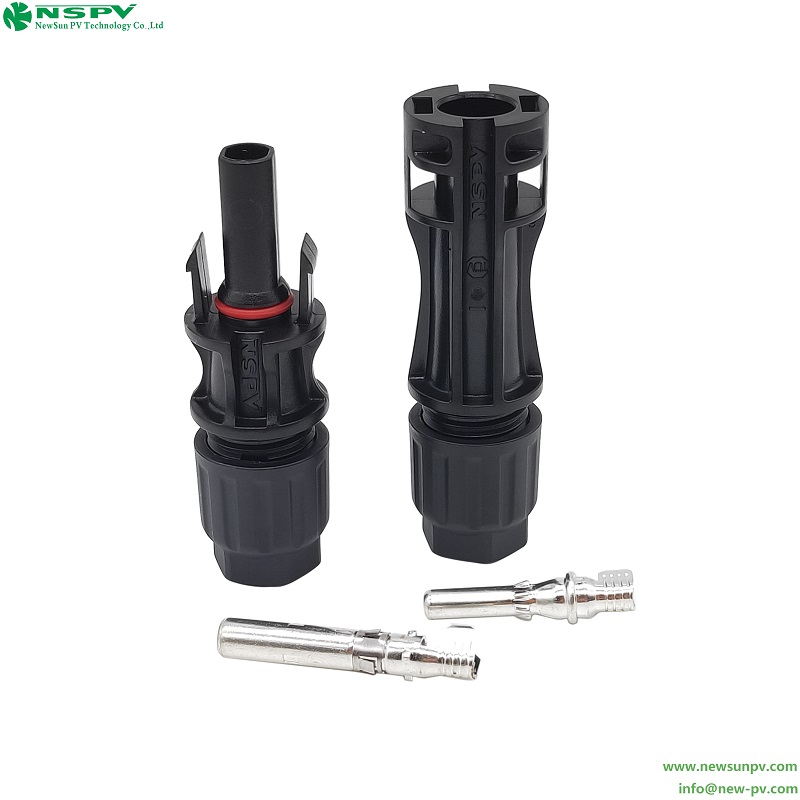

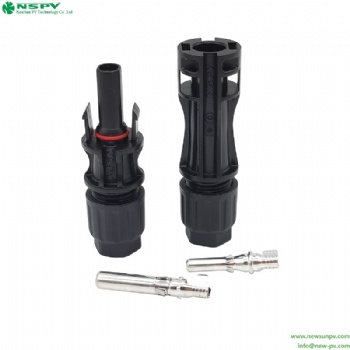

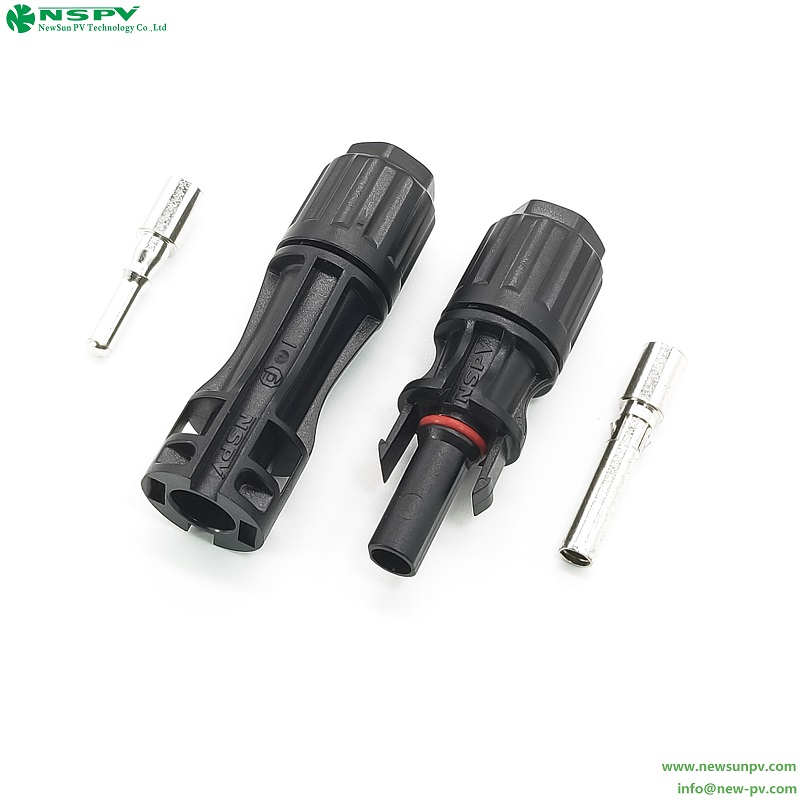

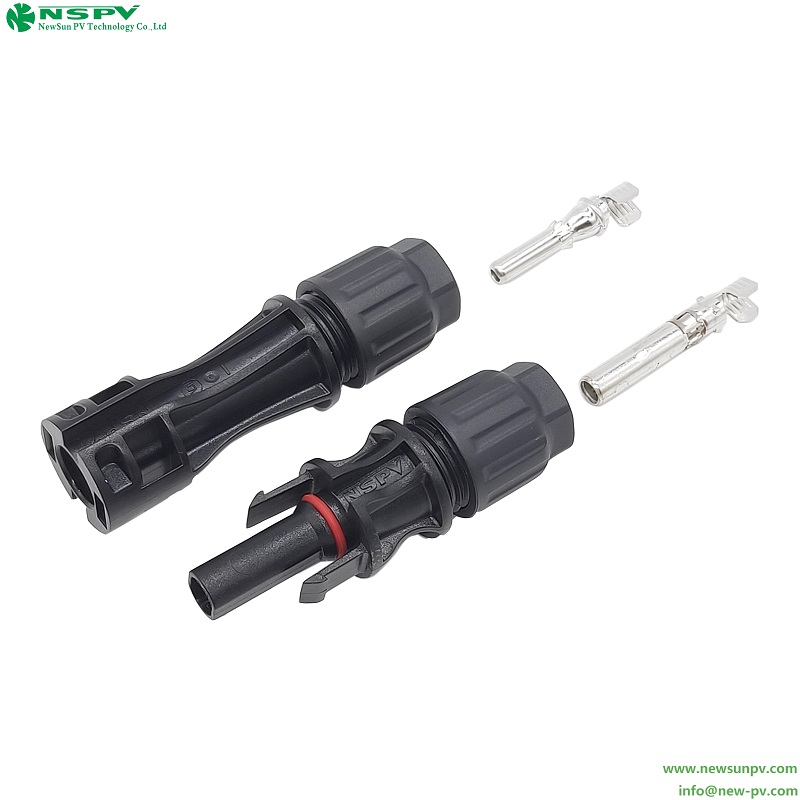

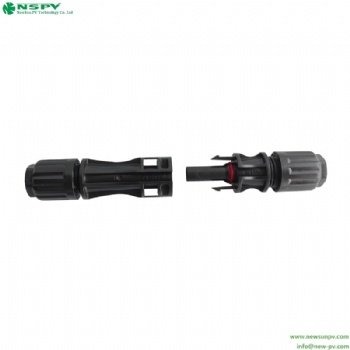

1500VDC Solar Cable Connector 1.5~6mm2

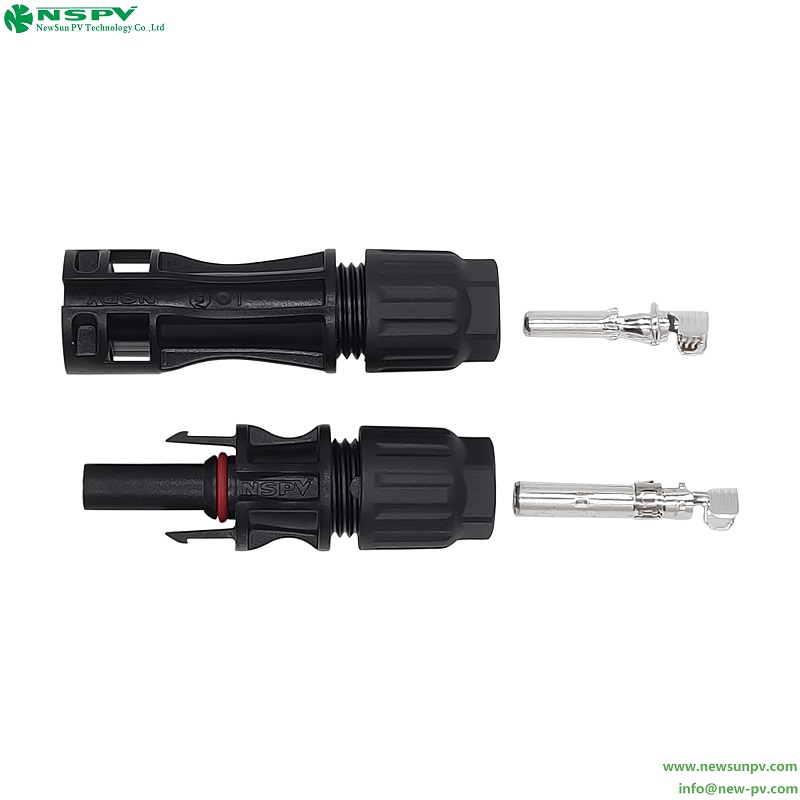

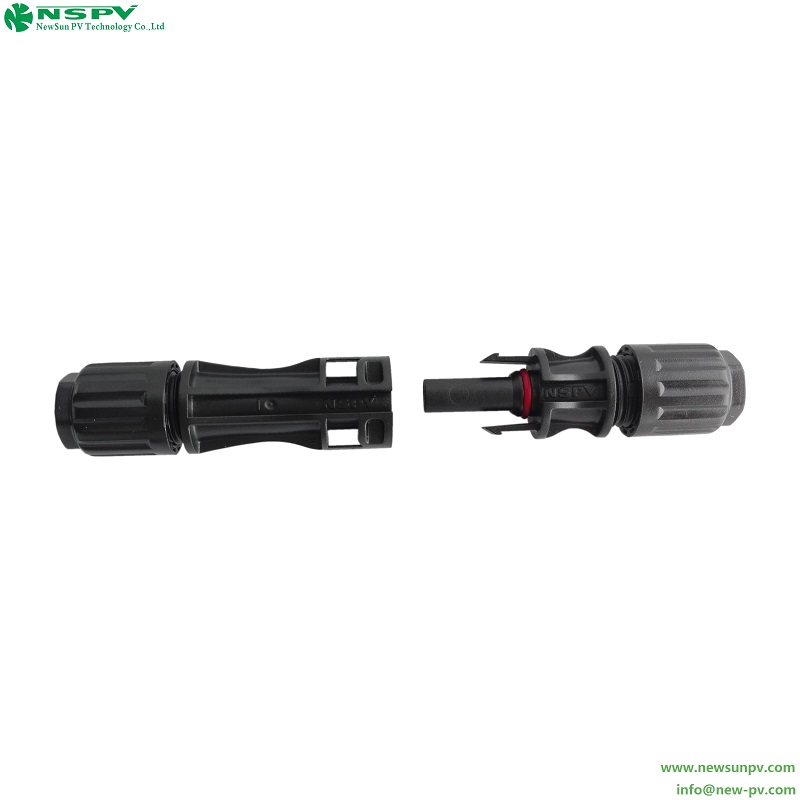

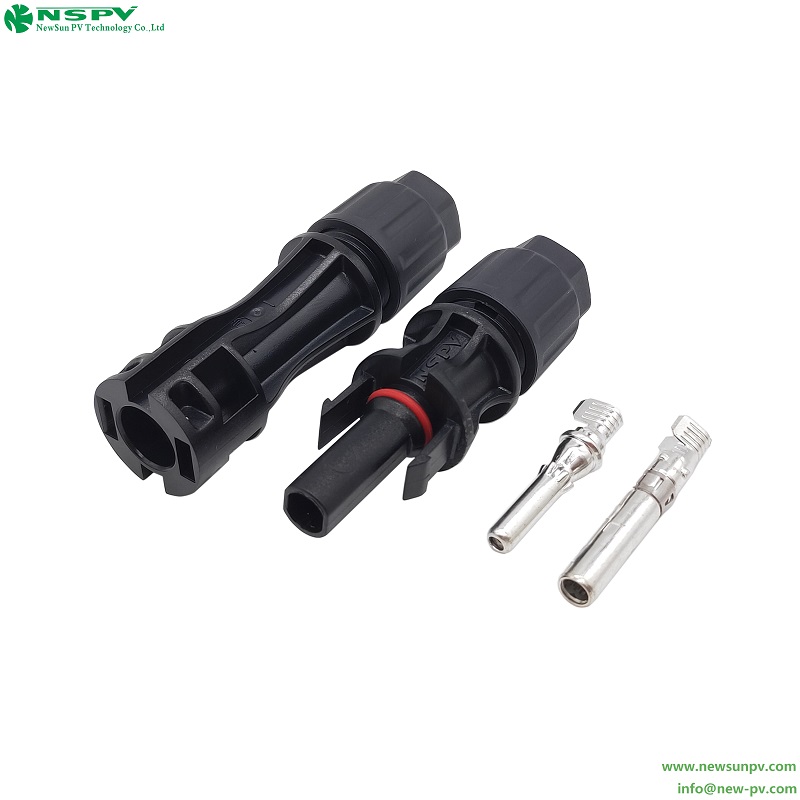

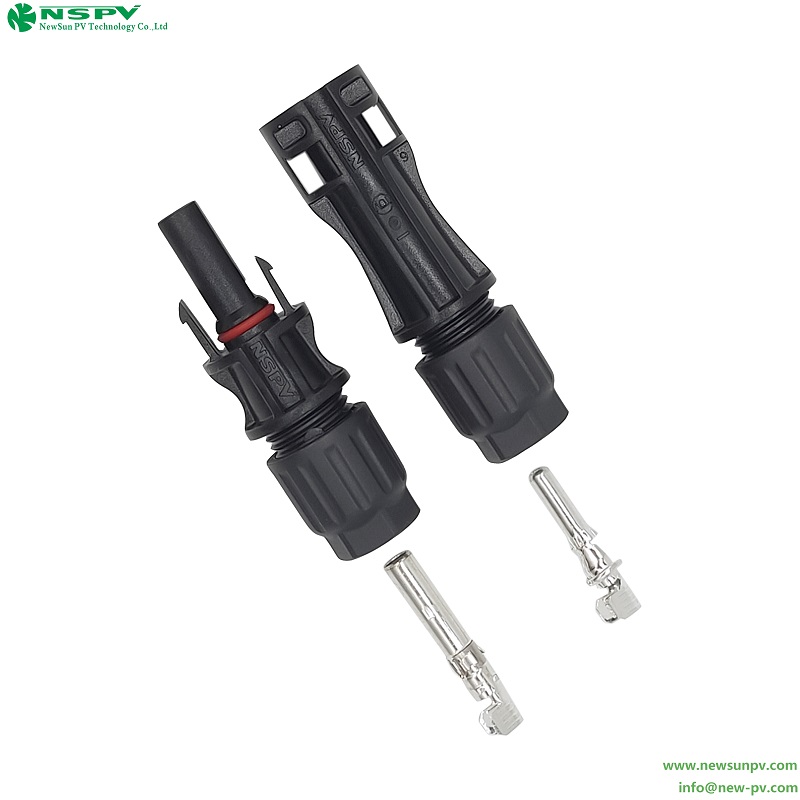

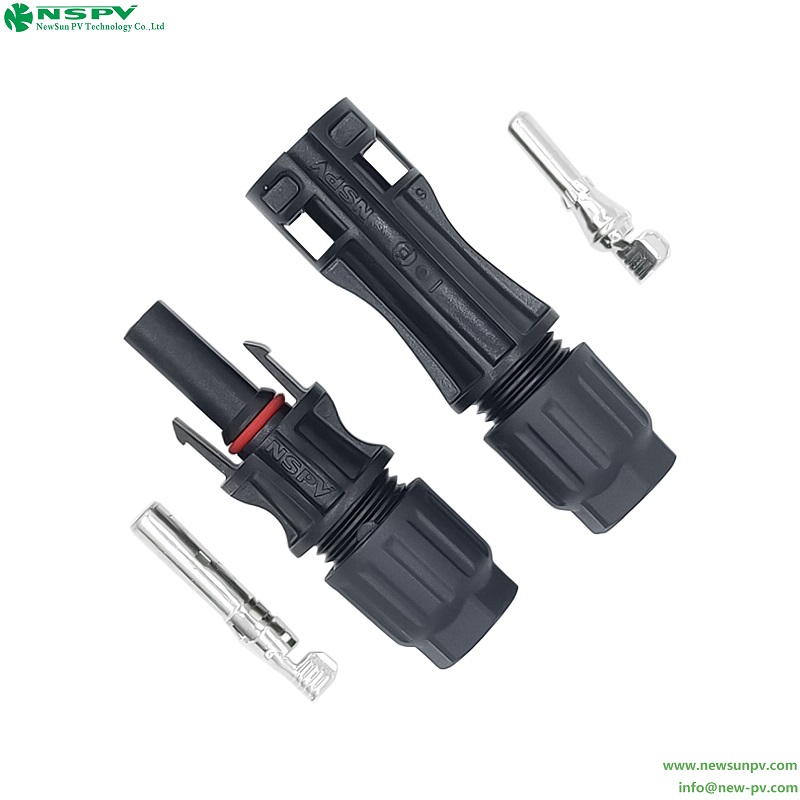

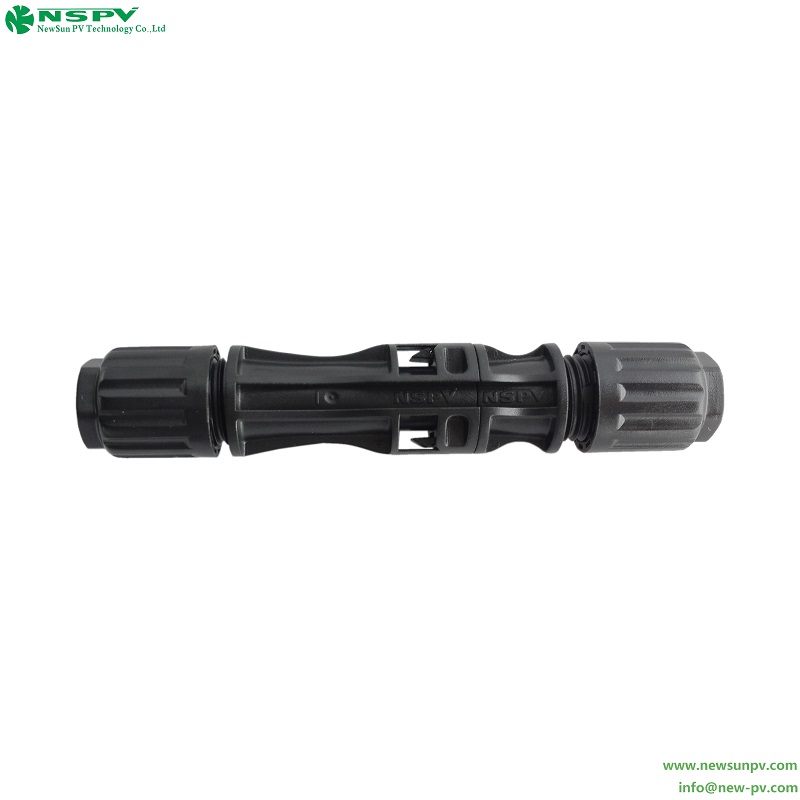

- The PV4.0 DC straight solar cable connector is used for solar system assembly,
- the waterproof class is IP68, it is a new type connector,
- detachable and good stability, convenient to install.
- INQUIRY
Product Description
PV4.0 DC straight Solar Connector Product Specifications
| Product Specifications | |
| Insulation material | PPE |
| Rated current | 35-60A |
| Rated voltage | 1500VDC |
| Test voltage | 8KV(50Hz,Imin) |
| Typical contact resistance | ≤0.25mΩ |
| Contact material of PV4.0 DC straight connector | Copper, Tin Plated |
| Degree of protection | IP68(1m,1H) |
| Safety degree | II |
| Flames class | UL94-V0 |
| Material RTI | 110°c |
| Withdrawal force | ≥50N |
| Insertion force | ≤50N |
| Ambient temperature range | -40°c until+85°c |
| Suitable cable cross sections | 2.5~10mm²(14AWG~6AWG) |
| Connecting system | Crimp connection |
