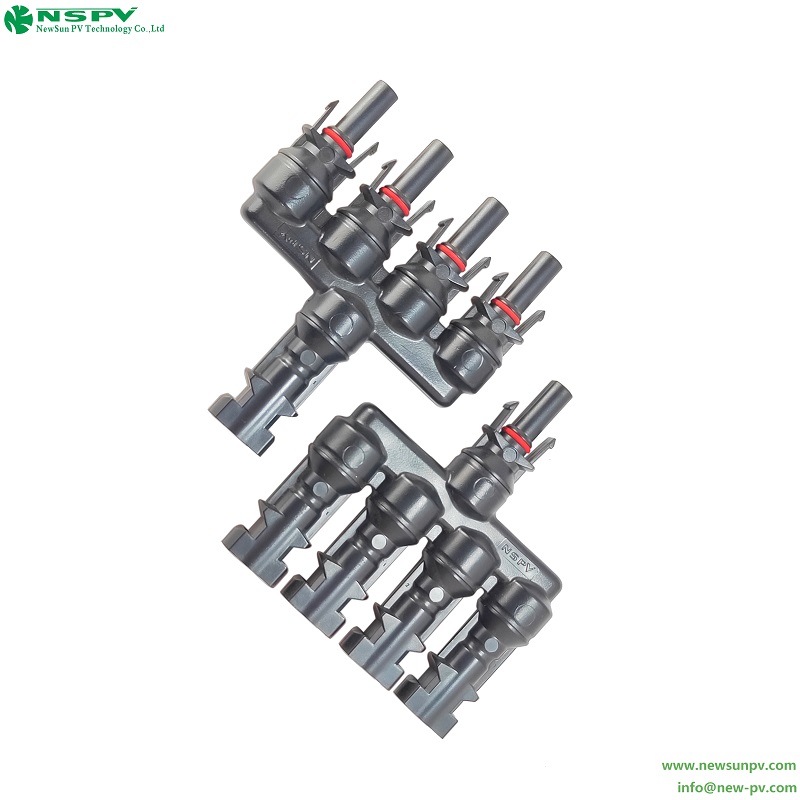

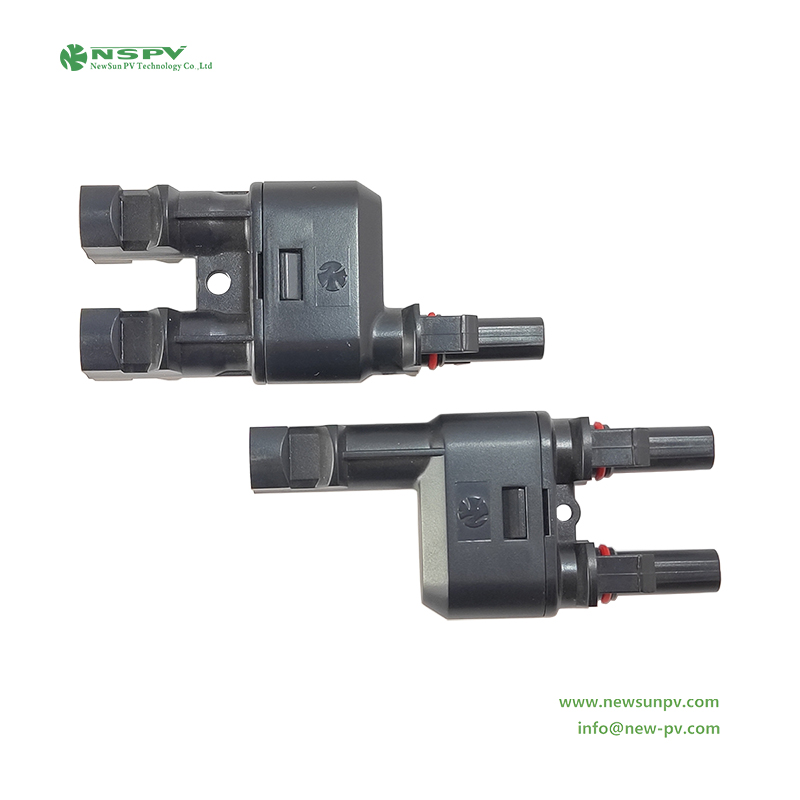

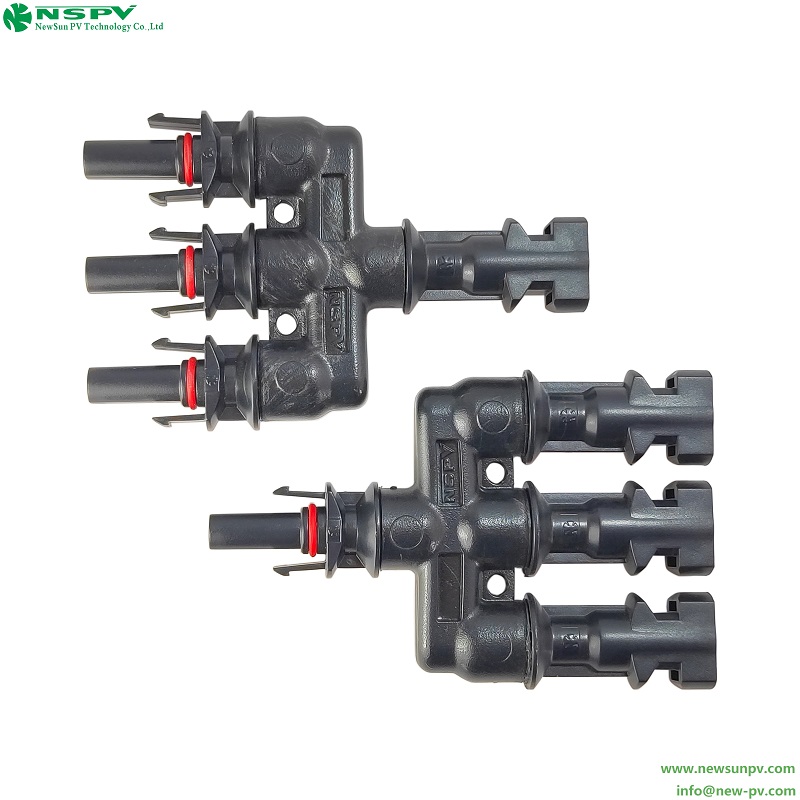

光伏1000VDC分支连接器2转1/3转1/4转1

Product Description

Specification:

额定电流..............................................................30A

额定电压.............................................................1000V

测试电压................................................................6kv(50Hz,lmin0

连接器接触电阻....................................................≤ 0.55m

导体材料............................................................Copper,Tin plated

防护等级............................................................IP2X/IP67

安全等级.............................................................II

防火等级.................................................................UL94-V0

RTI.......................................................................110°C

拔出力..................................................................≥ 50N

插入力..................................................................≤ 50N

环境温度范围......................................................-40°C until+85°C

端子尺寸...............................................................4.0

适配线缆规格.......................................................2.5/4.0/6.0mm2

Advantage:

简单，易于安装

标准设计, 可任意安装

具有抗老化、抗紫外线辐射能力

符合户外条件要求
